Muffle Furnaces EQ-KSL1600X-H2

By Emily Tan On Aug 28, 2010

Site: All of Engagez

Type: Article - Tags: Thermal Processing - # of views: 990

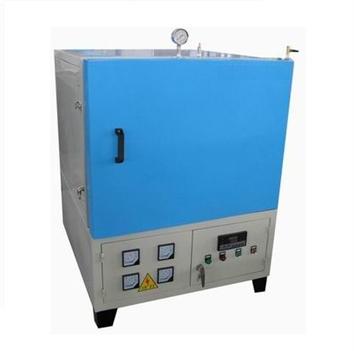

box furnace is designed for material synthesis under hydrogen atmosphere up to 1650 ^oC. The furnace consists of high quality alumina fiber brick and Mo alloy heating elements with heated chamber of 8"x8"x12", as well as vacuum sealed steel case with water cooling jacket. It is an ideal tool for preparing new materials which require reduced atmosphere, such as phosphor and Ti alloy. Please visit our websites or contact Global Nanotech Equipment by e-mail for more information in detail.

(http://www.globalnanotechequipment.com; [email protected])

A Muffle Furnaces (sometimes, retort furnace) in historical usage is a furnace in which the subject material is isolated from the fuel and all of the products of combustion including gases and flying ash.After the development of high-temperature electric heating elements and widespread electrification in developed countries, new muffle furnaces quickly moved to electric designs

Today, a Muffle Furnaces is (usually) a front-loading box-type oven or kiln for high-temperature applications such as fusing glass, creating enamel coatings, ceramics and soldering and brazing articles. They are also used in many research facilities, for example by chemists in order to determine what proportion of a sample is non-combustible and non-volatile (i.e., ash). Some digital controllers allow RS232 interface and permit the operator to program up to 126 segments, such as ramping, soaking, sintering, and more. Also, advances in materials for heating elements, such as molybdenum disilicide offered in certain models by Vecstar, can now produce working temperatures up to 1800 degrees centigrade, which facilitate more sophisticated metallurgical applications.

The term Muffle Furnaces may also be used to describe another oven constructed on many of the same principles as the box type kiln mentioned above, but takes the form of a long, wide, and thin hollow tube used in roll to roll manufacturing processes.

Both of the above mentioned Muffle Furnaces are usually heated to desired temperatures by conduction, convection, or blackbody radiation from electrical resistance heating elements. Therefore there is (usually) no combustion involved in the temperature control of the system, which allows for much greater control of temperature uniformity and assures isolation of the material being heated from the byproducts of fuel combustion.

Global Nanotech Equipment also provides the following Muffle Furnaces for high quality lab equipment in the world.

400-1200C Max. Muffle Furnaces heated by Electric Resistance Wire

EQ-KSL-FB1318M ,EQ-CMF-1100X-110V , EQ-CMF-1100X-220V ,EQ-KSL-1100X , EQ-KSL-1100X-PC , EQ-KSL-1100XM , EQ-KSL-1100XL , EQ-CF-1200X-110V , EQ-CF-1200X-240V , EQ-VBF-1200D8 , EQ-DHG-9000J , EQ-VBF-1200X , EQ-CVF-1300T.
